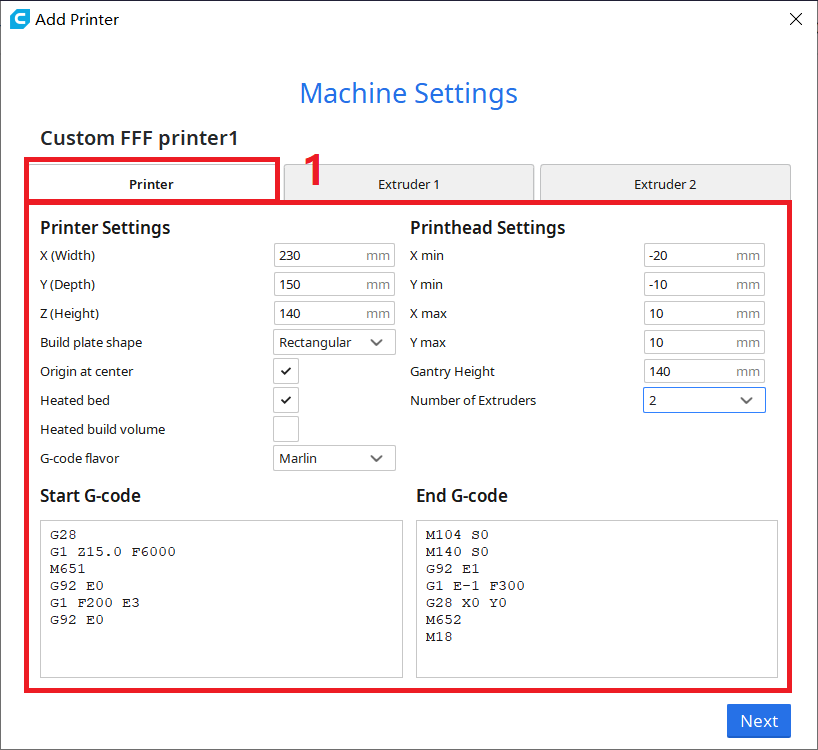

3) Refer to the Excel to select the corresponding parameters. Start G-code/End G-code



Machine Type

X (Width)

Y (Depth)

Z (Height)

Origin at center

Heated bed

Number of Extruders

Back Fan

Adventurer 3

150

150

150

√

√

1

√

Creator 3

300

250

205

√

√

2

√

Creator Pro 2

200

148

150

√

√

2

×

Dreamer

230

150

140

√

√

2

×

Dreamer NX

230

150

140

√

√

1

×

Finder

140

140

140

√

×

1

×

Guider

250

250

200

√

×

1

×

Guider II

280

250

300

√

√

1

×

Guider II S

280

250

300

√

√

1

√

Inventor Series

230

150

160

√

√

2

×

Inventor II Series

150

140

140

√

×

1

×

Adventurer 4

220

200

250

√

√

1

√


Start G-code:

G28

G1 Z15.0 F6000

M651 (if there is back fan with the printer and major print with ABS, then change to M652.)

G92 E0

G1 F200 E3

G92 E0


End G-code:

M104 S0

M140 S0

G92 E1

G1 E-1 F300

G28 X0 Y0

M652

M18

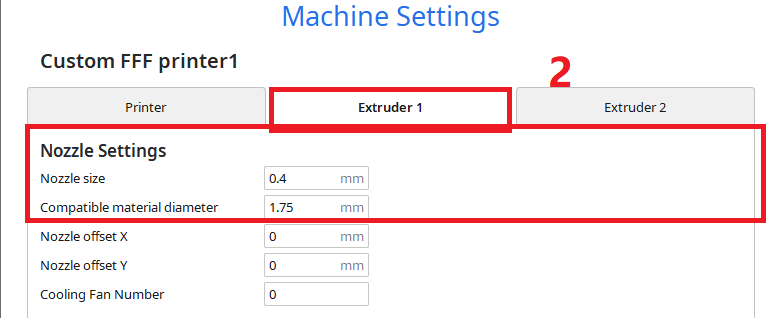

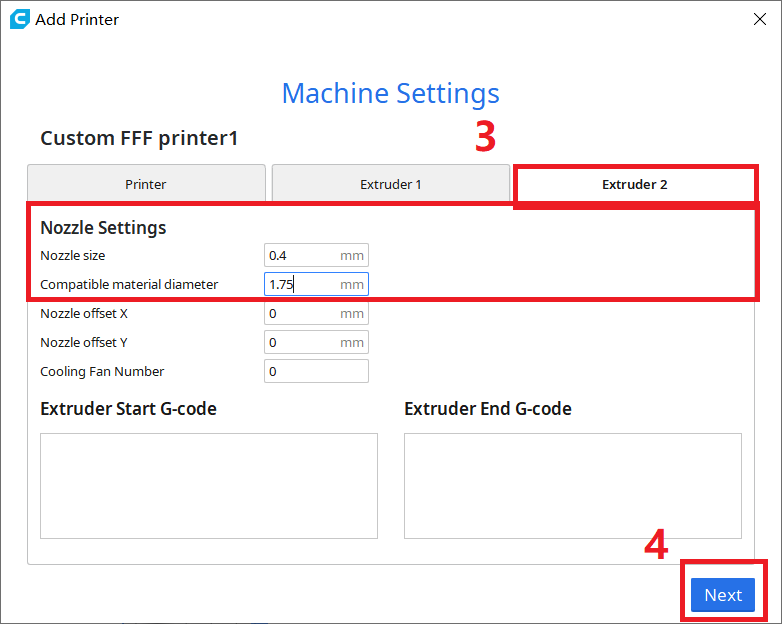

There is no Extruder 2 for the single extruder printer. For the dual extruder printer please click finish after finishing the Extruder 1



PS：

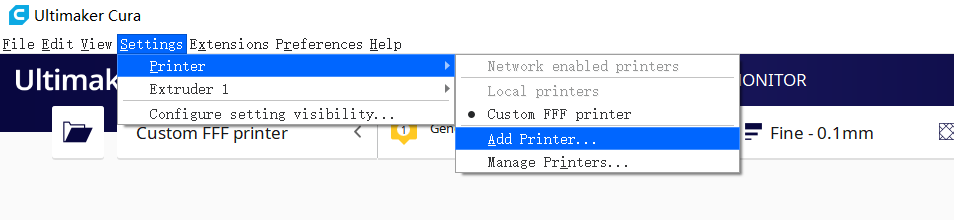

1）As there is many bug in Cura, the settings may not work sometimes even it has been modified, you need to close Cura and re-start it again when successfully added the printer.



2）For the dual extruder printers, Cura are not recommended.

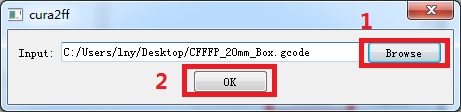

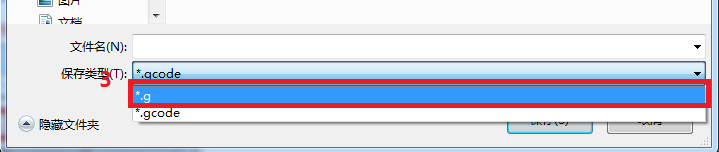

3)When slicing, use tool to transfer the file to gcode like below.


 After slicing, you need to use the following software to convert it into a format that can be recognized by the printer.

cura2ff.rar https://drive.google.com/open?id=1OqplOCvkzzVtmozpPebo3t2O7A-RaATZ

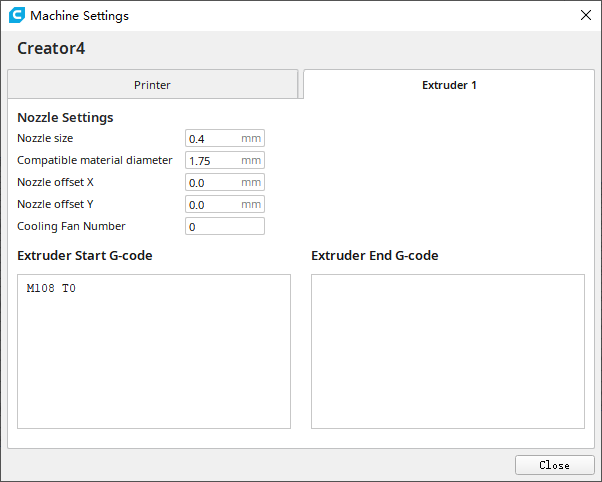

Screenshot of C4 configuration method：

Start G-code：

G90

G1 Z50.000 F420

M651 S255

End G-code：

M104 S0

M140 S0

G162 Z F1800

M652

G91

M18

Extruder Start G-code：

M108 T0

Note: Cura's files can only be used for right printhead printing and cannot set the chamber temperature




Please check the attachment for Cura's configuration file. After slicing, you need to use the following software to convert it into a format that can be recognized by the printer.


Attachments have a MacOS file & Windows File.
